Description
The Hyundai HiMC 12 Magnetic Contactor 220V 12A 3 Pole is an industrial electromagnetic switching device manufactured by Hyundai Heavy Industries Co., Ltd., South Korea. Designed for reliable electrical switching and motor control applications, this magnetic contactor is suitable for marine electrical systems, industrial machinery, motor starter panels, automation equipment, and power control circuits.
The Hyundai HiMC 12 features a three-pole configuration, a 220V AC coil designation, and a rated operational current of 12A at 440V under AC-3 utilization conditions. It is designed for frequent switching of compatible three-phase electrical loads, particularly electric motors and industrial machinery.
The contactor features three main power contacts and auxiliary contact terminals for integration with electrical control and automation circuits. Its compact construction makes it suitable for electrical control panels, shipboard machinery, industrial motor starters, and replacement applications.
Manufactured in Korea, the Hyundai HiMC 12 Magnetic Contactor is marked with IEC 60947-4-1 and KS C 4504 standards, making it a suitable component for compatible marine and industrial electrical installations.

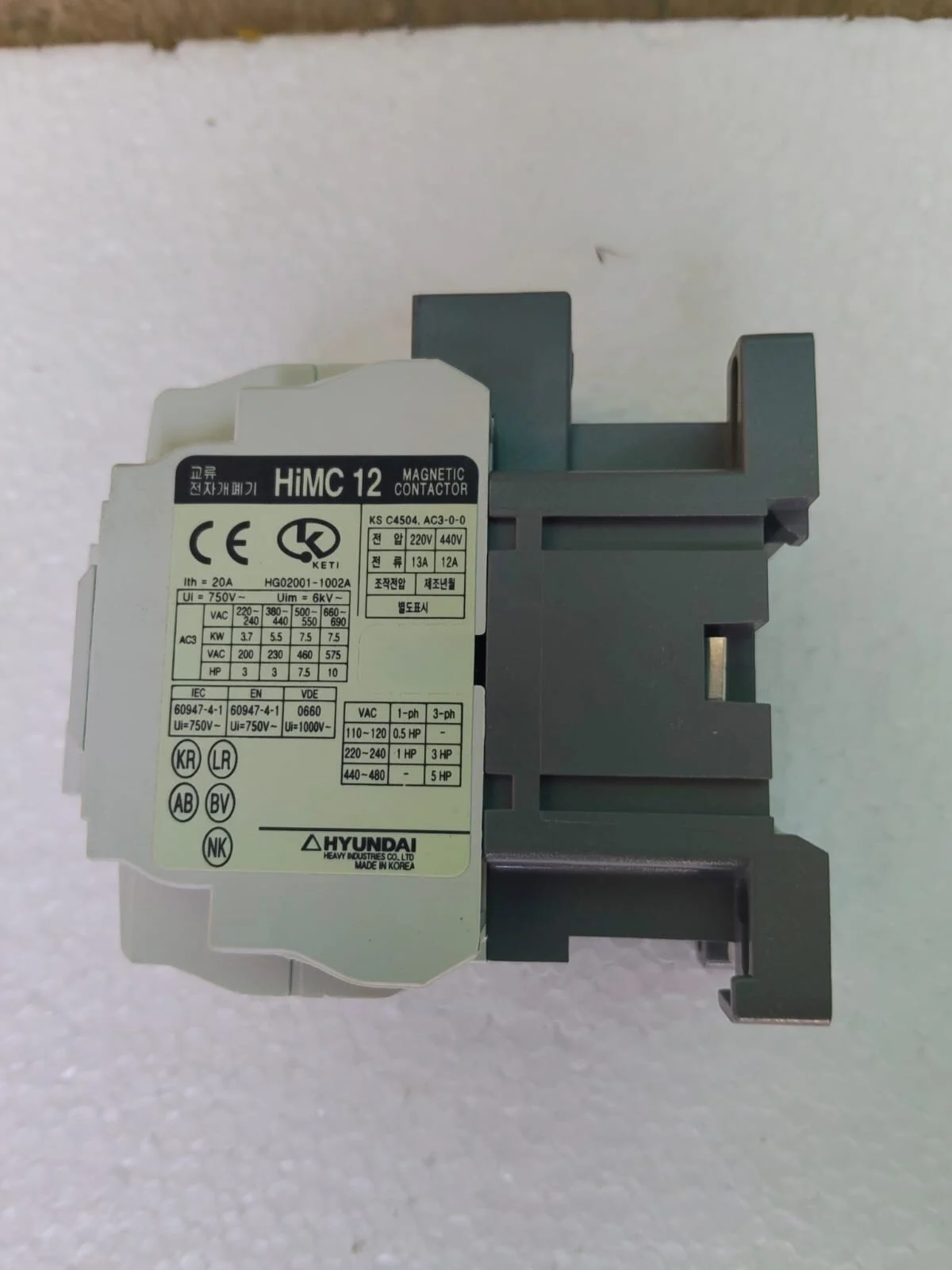

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Magnetic Contactor |
| Brand | Hyundai |
| Manufacturer | Hyundai Heavy Industries Co., Ltd. |
| Model | HiMC 12 |
| Product Code | HiMC12 11NR A220 |
| Contactor Type | Electromagnetic / Magnetic |
| Number of Poles | 3 Pole (3P) |
| Coil Voltage | AC 220V (A220 designation) |
| Rated Operational Current (AC-3) | 13A at 220V / 12A at 440V |
| Conventional Thermal Current (Ith) | 20A |
| Rated Insulation Voltage (Ui) | 750V |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Auxiliary Contacts | 1NO + 1NC |
| Main Input Terminals | 1L1, 3L2, 5L3 |
| Main Output Terminals | 2T1, 4T2, 6T3 |
| Operating Mechanism | Electromagnetic |
| Applicable Standard | IEC 60947-4-1 |
| Additional Standard | KS C 4504 |
| Certification Markings | CE, KETI and other marks |
| Country of Origin | South Korea |
| Manufacturer Marking | Made in Korea |

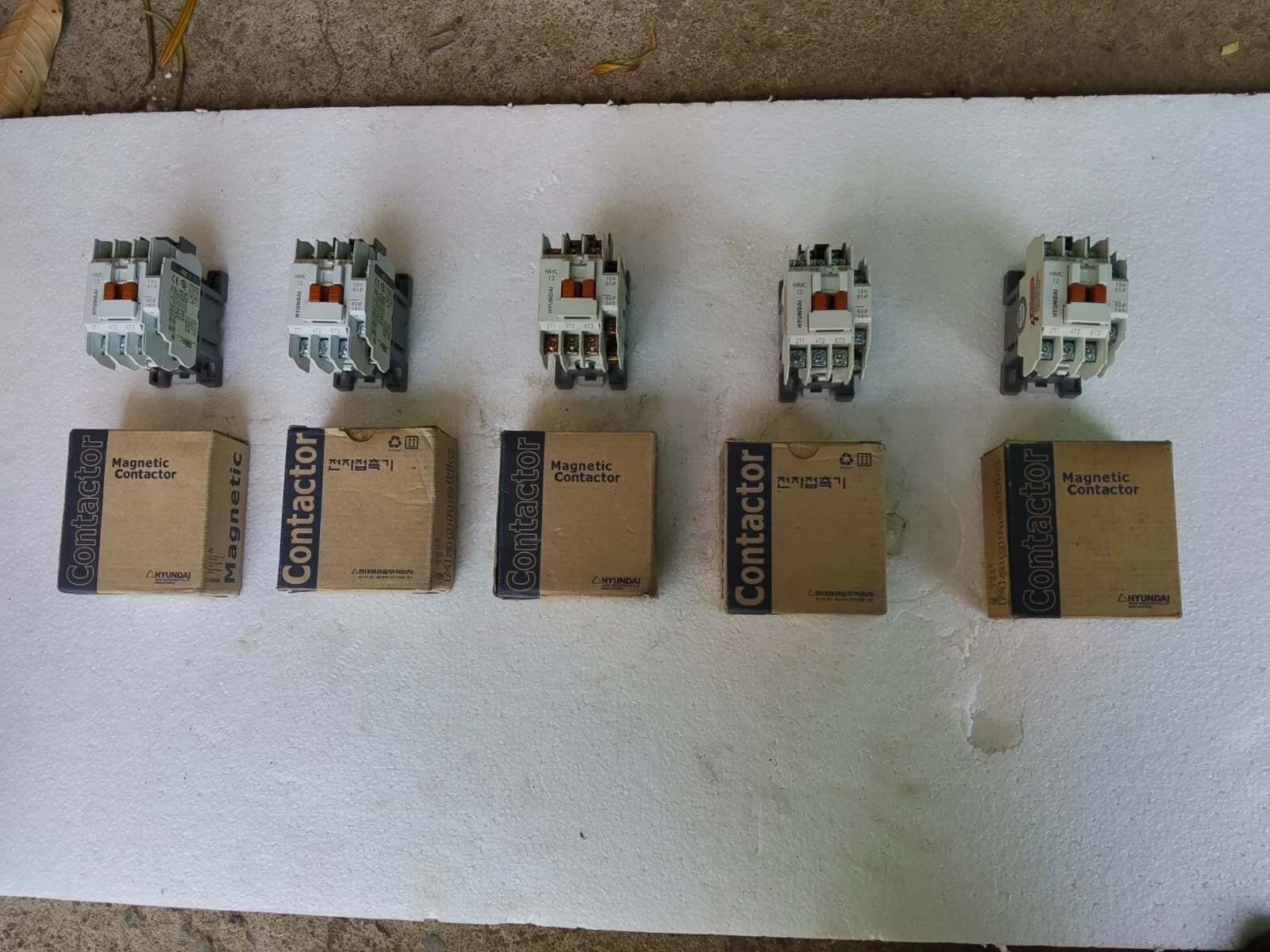

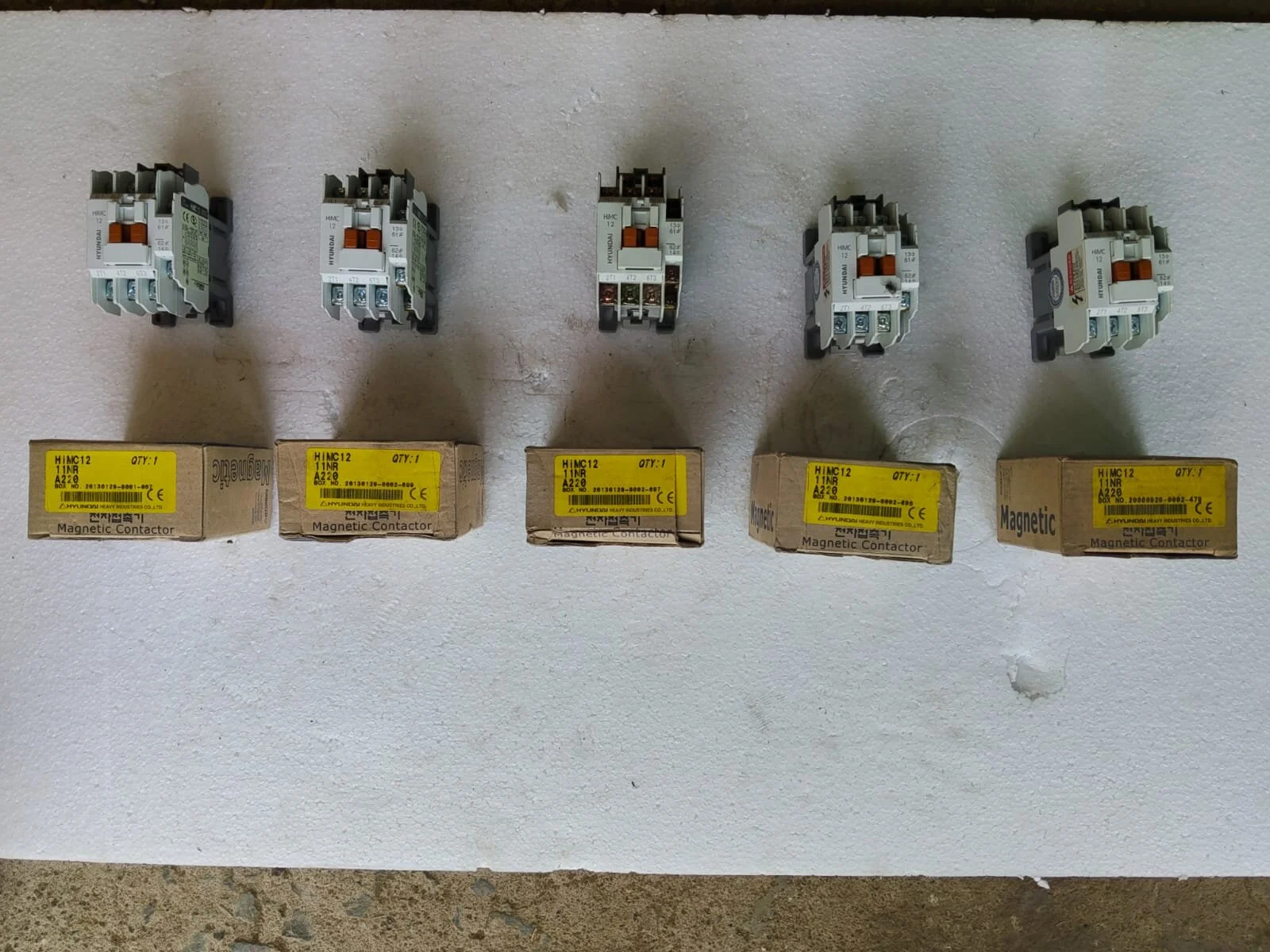

| Quantity Shown | 5 Pieces |
AC-3 Motor Rating
| Operating Voltage | Motor Power Rating |
|---|---|
| AC 220–240V | 3.7kW |
| AC 380–440V | 5.5kW |
| AC 500–550V | 7.5kW |
| AC 660–690V | 7.5kW |
Additional Electrical Ratings
| Parameter | Rating |
|---|---|
| AC-3 Current at 220V | 13A |
| AC-3 Current at 440V | 12A |
| Conventional Thermal Current | 20A |
| Rated Insulation Voltage | 750V |
| Rated Impulse Withstand Voltage | 6kV |
| Single-Phase Motor Rating at 220–240V | 1 HP |
| Three-Phase Motor Rating at 220–240V | 3 HP |
| Three-Phase Motor Rating at 440–480V | 5 HP |
Key Features
- Hyundai Heavy Industries magnetic contactor.
- HiMC 12 model with three-pole configuration.
- AC 220V coil designation (A220).
- Rated operational current of 12A at 440V AC-3.
- Conventional thermal current of 20A.
- Suitable for three-phase motor switching and control.
- Auxiliary contacts for control circuit integration.
- Compact electromagnetic switching mechanism.
- Suitable for marine and industrial electrical panels.
- Rated insulation voltage of 750V.
- IEC 60947-4-1 standard marking.
- CE and Korean certification markings.
- Manufactured in South Korea.
Applications
The Hyundai HiMC 12 Magnetic Contactor is suitable for a wide range of marine and industrial electrical applications, including:
- Marine electrical control panels
- Shipboard motor starter panels
- Industrial motor control circuits
- Marine pump control systems
- Compressor motor control panels
- Industrial automation systems
- Electrical switchboards
- Three-phase motor switching applications
- HVAC electrical control systems
- Machinery control cabinets
- Industrial electrical distribution equipment
- Auxiliary marine machinery
- Electrical maintenance and replacement applications
Why Choose Hyundai HiMC 12 Magnetic Contactor 220V?
The Hyundai HiMC 12 Magnetic Contactor provides an electromagnetic switching solution for marine and industrial motor control applications. Its three-pole design, 220V AC coil designation, and 12A AC-3 rating at 440V make it suitable for compatible three-phase electrical systems.
The contactor offers a conventional thermal current rating of 20A, a rated insulation voltage of 750V, and auxiliary contact terminals for integration with control circuits. Its compact design supports installation in industrial electrical cabinets, machinery control panels, and marine electrical systems.
Manufactured by Hyundai Heavy Industries Co., Ltd., South Korea, the HiMC 12 is suitable for maintenance, repair, and replacement of compatible electrical control equipment.
Labdhi Marine supplies Hyundai magnetic contactors, marine electrical spares, industrial control components, and electrical switching equipment for marine and industrial applications.
Contact Labdhi Marine for product availability, pricing, and bulk purchase inquiries
