Description
The Hyundai HMX-22 Control Relay 220V is a reliable industrial electromagnetic control relay manufactured by Hyundai Heavy Industries Co., Ltd., South Korea. Designed for electrical control, automation, and switching applications, this relay provides dependable operation in industrial machinery, marine electrical systems, motor control panels, and power distribution equipment.
The Hyundai HMX-22 features a compact construction, durable electrical contacts, and a 20A rated thermal current capacity. Its AC-15 utilization rating makes it suitable for controlling electromagnetic loads in industrial control circuits.
Manufactured in Korea, the HMX-22 control relay is suitable for use in industrial automation systems, electrical control cabinets, marine machinery, and equipment requiring reliable auxiliary switching operations.

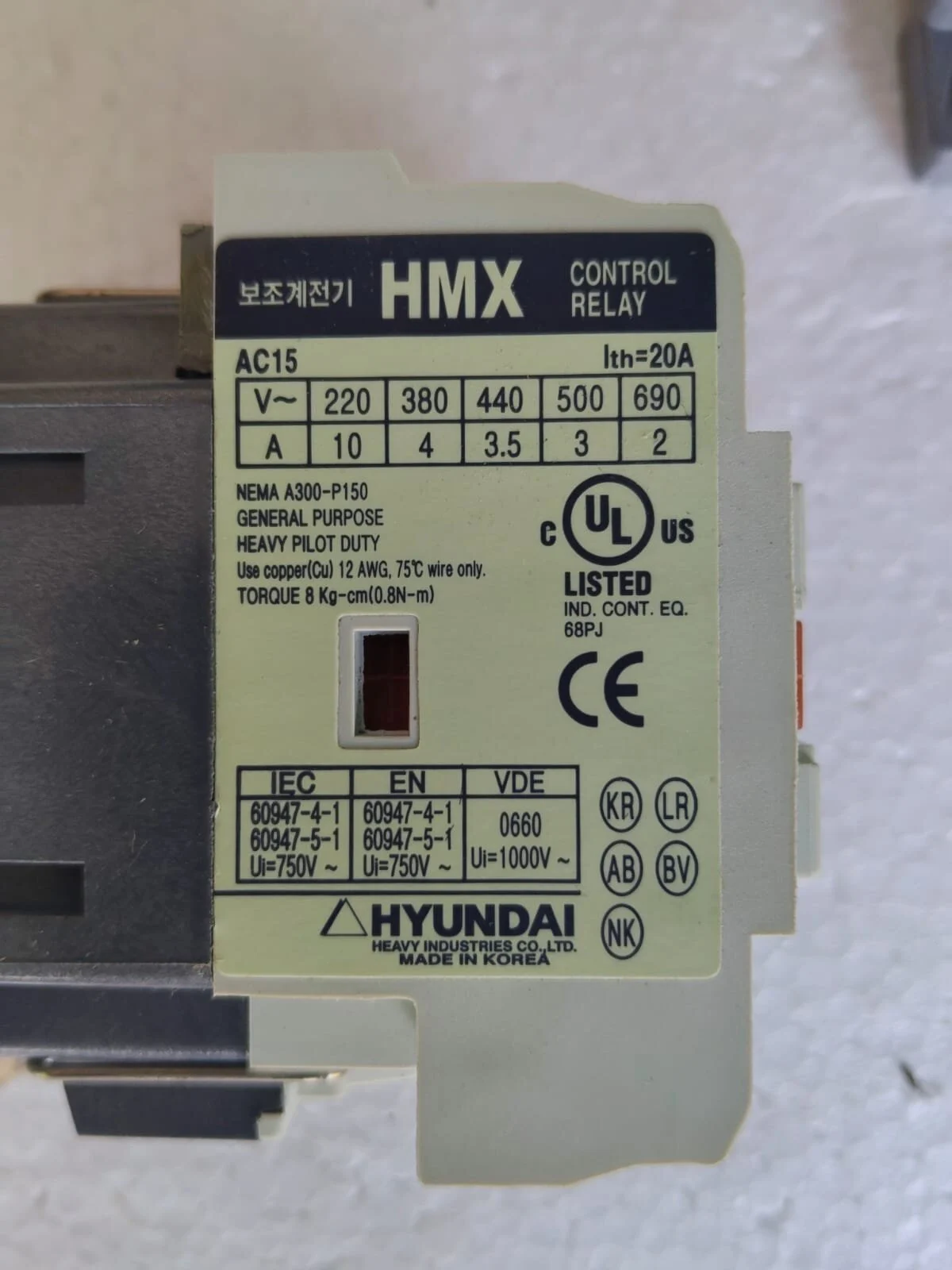

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Control Relay |
| Brand | Hyundai |
| Manufacturer | Hyundai Heavy Industries Co., Ltd. |
| Model | HMX-22 |
| Coil Voltage | 220V (as marked on packaging) |
| Rated Thermal Current (Ith) | 20A |
| Utilization Category | AC-15 |
| Contact Configuration | 2NO + 2NC |
| Rated Insulation Voltage (IEC/EN) | 750V AC |
| Rated Insulation Voltage (VDE) | 1000V AC |
| Applicable Standards | IEC 60947-4-1, IEC 60947-5-1 |
| NEMA Rating | A300–P150 |
| Terminal Wire Specification | Copper, 12 AWG, 75°C |
| Terminal Tightening Torque | 0.8 N·m |
| Certifications / Markings | CE, UL Listed |
| Country of Origin | South Korea |
AC-15 Electrical Ratings
| Operating Voltage (AC) | Rated Current |
|---|---|
| 220V | 10A |
| 380V | 4A |
| 440V | 3.5A |
| 500V | 3A |
| 690V | 2A |
Key Features
- Genuine Hyundai Heavy Industries control relay.
- 220V control voltage variant.
- 20A rated thermal current for industrial control applications.
- 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
- Compact design for installation in electrical control panels.
- Suitable for industrial automation and motor control circuits.
- Durable construction for demanding industrial environments.
- Manufactured in South Korea.
- CE marked and UL Listed.
Applications
The Hyundai HMX-22 Control Relay 220V is suitable for various industrial and marine electrical applications, including:
- Marine electrical control panels
- Shipboard machinery control systems
- Industrial automation equipment
- Motor starter and control circuits
- Electrical distribution and switching panels
- Pump and compressor control systems
- Industrial machinery and equipment
- Auxiliary control and interlocking circuits
Why Choose Hyundai HMX-22 Control Relay?
The Hyundai HMX-22 Control Relay offers reliable electrical switching performance, durable construction, and compatibility with industrial control systems. Its compact design and multiple auxiliary contacts make it a practical choice for electrical maintenance, industrial automation, and marine equipment applications.
Labdhi Marine supplies Hyundai electrical control components for marine and industrial equipment requirements.
Contact Labdhi Marine for pricing, product availability, and bulk purchase inquiries.
